Modem 日志抓取

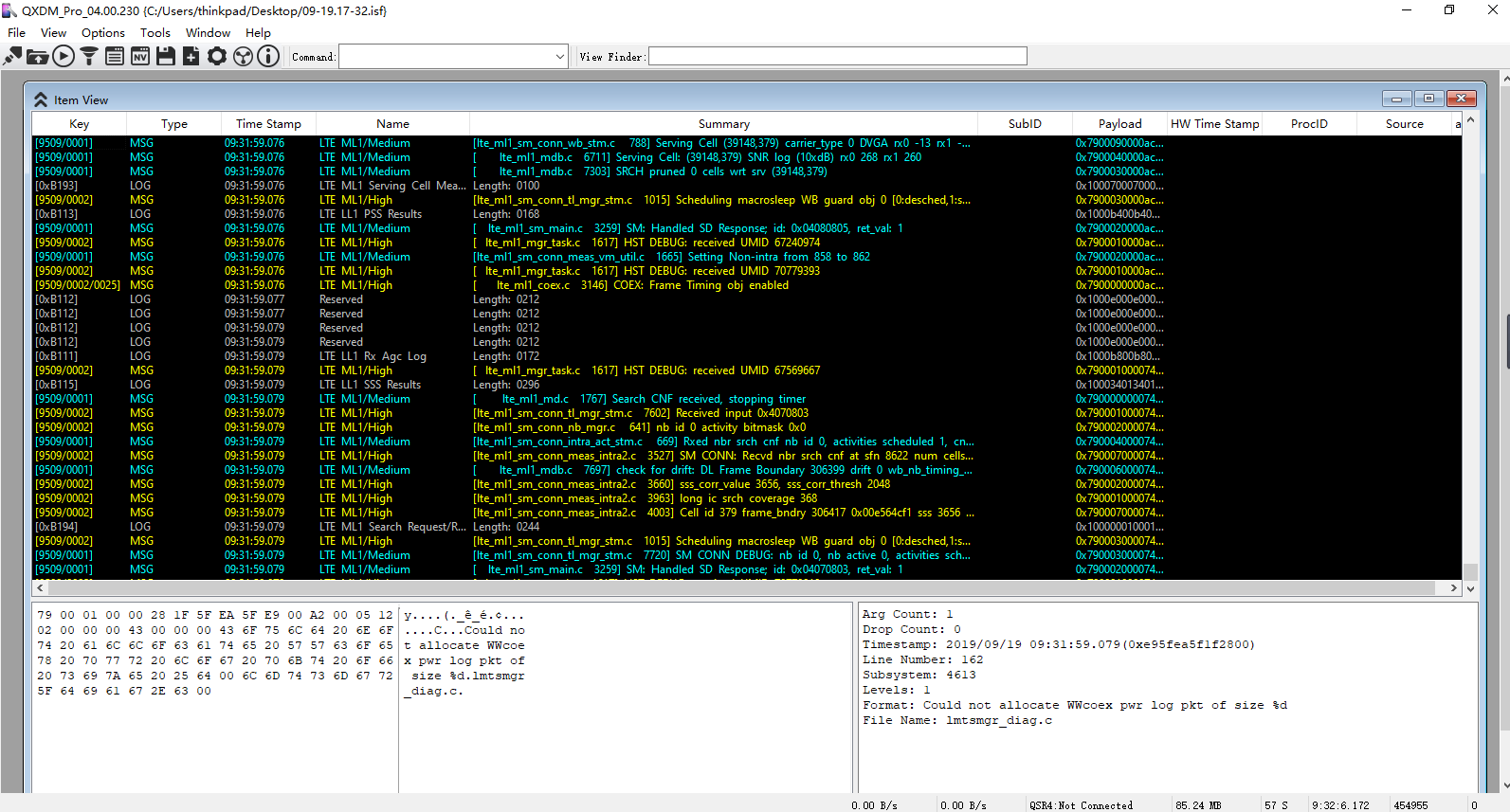

高通 QXDM
MTK mtklog
打开 mtklog
- ##364633##
- adb shell am start -n com.mediatek.mtklogger/.MainActivity

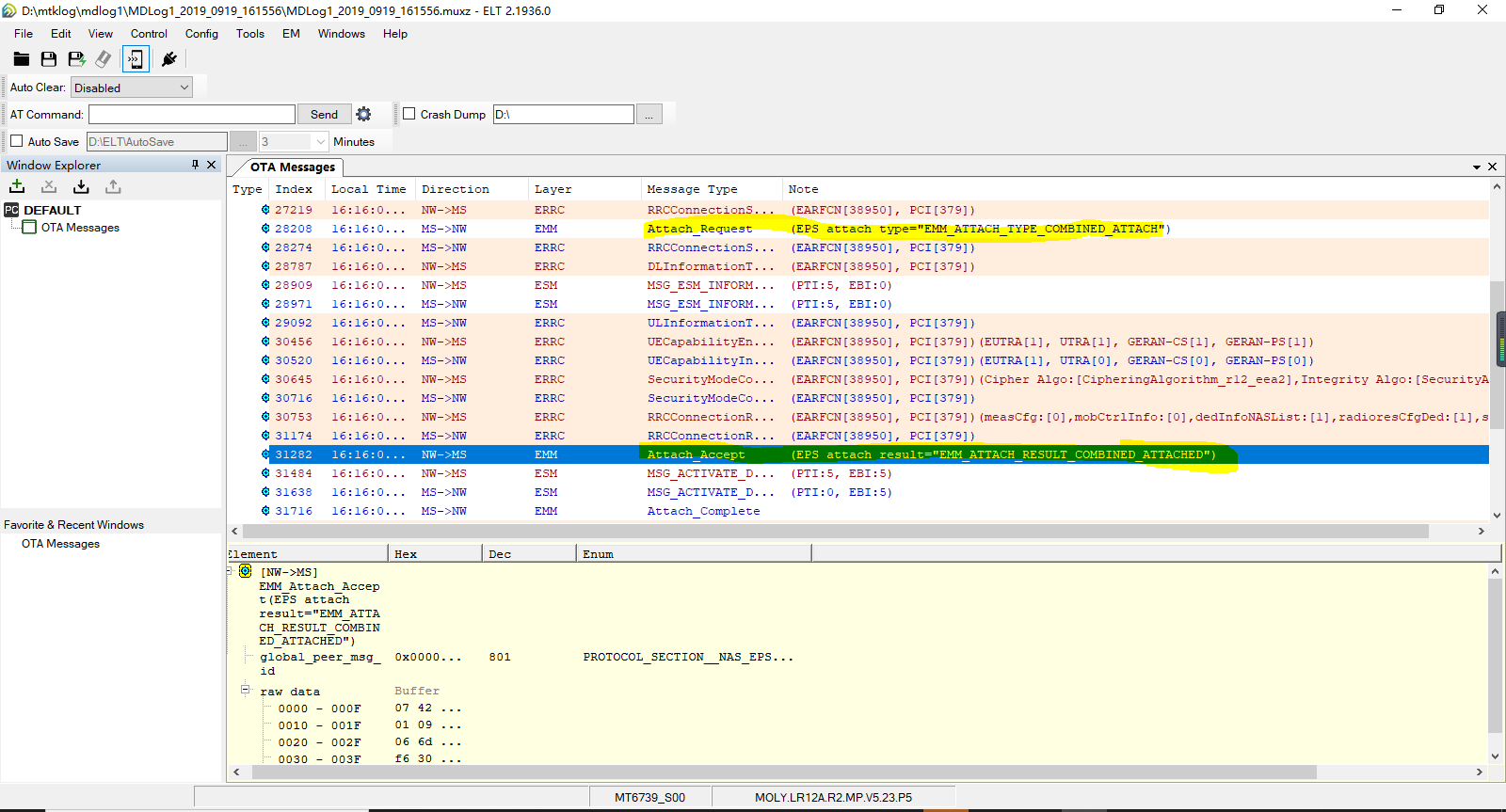

modem log查看工具ELT
├── file_tree.txt
└── MDLog1_2019_0919_161556
├── DbgInfo_LR12A.R2.MP_HQ6739_65_BD2_N1_MOLY_LR12A_R2_MP_V5_23_P5_2019_06_03_17_58_1_ulwctg_n
├── file_tree.txt
├── MDDB_InfoCustomAppSrcP_MT6739_S00_MOLY_LR12A_R2_MP_V5_23_P5_1_ulwctg_n.EDB
├── MDDB.META_MT6739_S00_MOLY_LR12A_R2_MP_V5_23_P5_1_ulwctg_n.EDB
├── MDDB.META.ODB_MT6739_S00_MOLY_LR12A_R2_MP_V5_23_P5_1_ulwctg_n.XML.GZ
├── MDLog1_2019_0919_161556.muxz
├── mdm_layout_desc_1_ulwctg_n.dat
└── version_info.txt
注册网络失败
dumpsys phone
V2_PRO:/ $ dumpsys phone
******* OmtpVvm *******
======= Configs =======
OmtpVvmCarrierConfigHelper [subId: 1, carrierConfig: false, telephonyConfig: false, type: null, destinationNumber: null, applicationPort: 0, sslPort: 0, isEnabledByDefault: false, isCellularDataRequired: false, isPrefetchEnabled: true, isLegacyModeEnabled: false]
======== Logs =========
08-28 15:04:28.721 - VvmSimChangeReceiver: Sim removed, removing inactive accounts
08-28 15:04:39.183 - VvmBootCompletedRcvr: processing subId list
08-28 15:04:39.188 - VvmBootCompletedRcvr: phone account ComponentInfo{com.android.phone/com.android.services.telephony.TelephonyConnectionService}, [e0184adedf913b076626646d3f52c3b49c39ad6d], UserHandle{0} has invalid subId -1
08-28 15:04:52.314 - VvmSimChangeReceiver: Sim removed, removing inactive accounts
08-28 15:04:53.001 - VvmSimChangeReceiver: Empty MCCMNC, possible modem crash. Ignoring carrier config changed event
08-28 15:04:54.885 - VvmSimChangeReceiver: Empty MCCMNC, possible modem crash. Ignoring carrier config changed event
08-28 15:04:57.839 - VvmSimChangeReceiver: Carrier config changed
08-28 15:04:57.857 - VvmSimChangeReceiver: visual voicemail not supported for carrier 46004 on subId 1
dumpsys telephony.registry
V2_PRO:/ $ dumpsys telephony.registry
last known state:
Phone Id=0
mCallState=0
mCallIncomingNumber=
mServiceState=1 1 voice home data home null null null null null null Unknown Unknown CSS not supported -1 -1 RoamInd=-1 DefRoamInd=-1 EmergOnly=false IsDataRoamingFromRegistration=false IsUsingCarrierAggregation=false mRilImsRadioTechnology=0
mSignalStrength=SignalStrength: 99 0 -120 -160 -120 -1 -1 99 2147483647 2147483647 2147483647 2147483647 2147483647 gsm|lte
mMessageWaiting=false
mCallForwarding=false
mDataActivity=0
mDataConnectionState=-1
mDataConnectionPossible=false
mDataConnectionReason=dataEnabled
mDataConnectionApn=
mDataConnectionLinkProperties=null
mDataConnectionNetworkCapabilities=null
mCellLocation=Bundle[{cid=-1, lac=-1, psc=-1}]
mCellInfo=null
dumpsys isub
V2_PRO:/ $ dumpsys isub
SubscriptionController:
defaultSubId=1
defaultDataSubId=1
defaultVoiceSubId=1
defaultSmsSubId=1
defaultDataPhoneId=0
defaultVoicePhoneId=0
defaultSmsPhoneId=0
sSlotIdxToSubId[0]: subId=1
++++++++++++++++++++++++++++++++
ActiveSubInfoList:
{id=1, iccId=898602 simSlotIndex=0 displayName=树米eSIM carrierName=没有服务 — 树米eSIM nameSource=0 iconTint=-16746133 dataRoaming=0 iconBitmap=android.graphics.Bitmap@3df6eb4 mcc 460 mnc 4}
++++++++++++++++++++++++++++++++
AllSubInfoList:
{id=1, iccId=898602 simSlotIndex=0 displayName=树米eSIM carrierName=没有服务 — 树米eSIM nameSource=0 iconTint=-16746133 dataRoaming=0 iconBitmap=android.graphics.Bitmap@900c652 mcc 460 mnc 4}
++++++++++++++++++++++++++++++++
0: 08-28 15:04:27 pid=1646 tid=1646 [SubscriptionController] init by Context
1: 08-28 15:04:27 pid=1646 tid=1723 [getActiveSubInfoList] Sub Controller not ready
2: 08-28 15:04:27 pid=1646 tid=1657 [getPhoneId]- no sims, returning default phoneId=0
v2-pro 驻网失败
com.android.phone
USER PID PPID VSIZE RSS WCHAN PC NAME
radio 1627 501 1012844 30296 SyS_epoll_ b17ef438 S com.android.phone
radio 1632 1627 1012844 30296 futex_wait b17be6bc S Jit thread pool
radio 1635 1627 1012844 30296 do_sigtime b17ef7a4 S Signal Catcher
radio 1636 1627 1012844 30296 poll_sched b17ef67c S JDWP
radio 1637 1627 1012844 30296 futex_wait b17be6bc S ReferenceQueueD
radio 1638 1627 1012844 30296 futex_wait b17be6bc S FinalizerDaemon
radio 1639 1627 1012844 30296 futex_wait b17be6bc S FinalizerWatchd
radio 1640 1627 1012844 30296 futex_wait b17be6bc S HeapTaskDaemon
radio 1641 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_1
radio 1642 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_2
radio 1705 1627 1012844 30296 futex_wait b17be6bc S pool-1-thread-1
radio 1712 1627 1012844 30296 SyS_epoll_ b17ef438 S RILSender0
radio 1715 1627 1012844 30296 unix_strea b17f0730 S RILReceiver0
radio 1731 1627 1012844 30296 SyS_epoll_ b17ef438 S IccPbHandlerLoa
radio 1732 1627 1012844 30296 SyS_epoll_ b17ef438 S GsmCellBroadcas
radio 1733 1627 1012844 30296 SyS_epoll_ b17ef438 S GsmInboundSmsHa
radio 1734 1627 1012844 30296 SyS_epoll_ b17ef438 S CellBroadcastHa
radio 1735 1627 1012844 30296 SyS_epoll_ b17ef438 S CdmaInboundSmsH
radio 1738 1627 1012844 30296 SyS_epoll_ b17ef438 S CdmaServiceCate
radio 1740 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_3
radio 1742 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_4
radio 1763 1627 1012844 30296 SyS_epoll_ b17ef438 S DcHandlerThread
radio 1807 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_5
radio 2882 1627 1012844 30296 SyS_epoll_ b17ef438 S ervice.Executor
radio 2883 1627 1012844 30296 SyS_epoll_ b17ef438 S ConnectivityThr
radio 3297 1627 1012844 30296 SyS_epoll_ b17ef438 S Cat Telephony s
radio 3298 1627 1012844 30296 SyS_epoll_ b17ef438 S RilMessageDecod
radio 3299 1627 1012844 30296 SyS_epoll_ b17ef438 S Cat Icon Loader
radio 3343 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_6
radio 3344 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_7
radio 3345 1627 1012844 30296 binder_thr b17ef57c S Binder:1627_8
rild
USER PID PPID VSIZE RSS WCHAN PC NAME
radio 547 1 77620 2580 hrtimer_na b624c4d4 S /system/bin/rild
radio 736 547 77620 2580 poll_sched b624b67c S rild
radio 738 547 77620 2580 diagchar_r b624c640 S rild
radio 868 547 77620 2580 binder_thr b624b57c S Binder:547_1
radio 869 547 77620 2580 poll_sched b624b67c S rild
radio 870 547 77620 2580 binder_thr b624b57c S Binder:547_2
radio 882 547 77620 2580 inotify_re b624c640 S rild
radio 884 547 77620 2580 poll_sched b624b67c S rild
radio 885 547 77620 2580 unix_strea b624c6e0 S rild
radio 886 547 77620 2580 __skb_recv b624b398 S rild
radio 890 547 77620 2580 __skb_recv b624b398 S rild
radio 893 547 77620 2580 __skb_recv b624b398 S rild
radio 894 547 77620 2580 futex_wait b621a6bc S rild
radio 895 547 77620 2580 poll_sched b624b67c S rild
radio 897 547 77620 2580 poll_sched b624b624 S rild
radio 957 547 77620 2580 poll_sched b624b624 S rild
radio 959 547 77620 2580 poll_sched b624b624 S rild
radio 960 547 77620 2580 poll_sched b624b624 S rild
radio 961 547 77620 2580 poll_sched b624b624 S rild
radio 962 547 77620 2580 poll_sched b624b624 S rild
radio 963 547 77620 2580 poll_sched b624b624 S rild
radio 966 547 77620 2580 poll_sched b624b624 S rild
radio 967 547 77620 2580 poll_sched b624b624 S rild
radio 969 547 77620 2580 poll_sched b624b624 S rild
radio 971 547 77620 2580 __skb_recv b624b398 S rild
radio 972 547 77620 2580 poll_sched b624b624 S rild
radio 977 547 77620 2580 poll_sched b624b624 S rild
radio 978 547 77620 2580 poll_sched b624b624 S rild
radio 980 547 77620 2580 futex_wait b621a6bc S rild
radio 981 547 77620 2580 futex_wait b621a6bc S rild
radio 982 547 77620 2580 poll_sched b624b624 S rild
radio 983 547 77620 2580 poll_sched b624b67c S rild
radio 985 547 77620 2580 poll_sched b624b624 S rild
radio 986 547 77620 2580 poll_sched b624b624 S rild
radio 987 547 77620 2580 poll_sched b624b624 S rild
radio 996 547 77620 2580 futex_wait b621a6bc S rild
radio 997 547 77620 2580 poll_sched b624b624 S rild
radio 1000 547 77620 2580 unix_strea b624c6e0 S rild
radio 1001 547 77620 2580 poll_sched b624b624 S rild
radio 1002 547 77620 2580 poll_sched b624b624 S rild
// 开始搜网
09-19 13:57:36.686 1627 3345 D RILJ : [4221]> QUERY_AVAILABLE_NETWORKS [SUB0]
// RILReceiver0
09-19 13:57:36.707 1627 1715 D RILJ : [4221] Ack < QUERY_AVAILABLE_NETWORKS [SUB0]
09-19 13:57:38.236 1627 1715 D RILJ : Response received for [4221] QUERY_AVAILABLE_NETWORKS Sending ack to ril.cpp [SUB0]
09-19 13:57:38.236 1627 1715 D RILJ : [4221]< QUERY_AVAILABLE_NETWORKS [OperatorInfo CHINA MOBILE/CMCC/46000/UNKNOWN] [SUB0]
// com.android.phone 主线程
09-19 13:57:38.241 1627 1627 D RILJ : [4223]> SET_NETWORK_SELECTION_MANUAL 46000 [SUB0]
// rild
09-19 13:57:38.897 547 869 I RILQ : (0/547):RIL[0][event] qcril_qmi_nas_reset_data_snapshot_cache_and_timer: Resetting snapshot timer
// 收到 Modem 主动上报的消息 UNSOL_RESPONSE_VOICE_NETWORK_STATE_CHANGED
09-19 13:57:38.914 1627 1715 D RILJ : Unsol response received for UNSOL_RESPONSE_VOICE_NETWORK_STATE_CHANGED Sending ack to ril.cpp [SUB0]
09-19 13:57:38.914 1627 1715 D RILJ : [UNSL]< UNSOL_RESPONSE_VOICE_NETWORK_STATE_CHANGED [SUB0]
09-19 13:57:38.914 1627 1627 D RILJ : [4225]> OPERATOR [SUB0]
09-19 13:57:38.916 1627 1627 D RILJ : [4226]> DATA_REGISTRATION_STATE [SUB0]
09-19 13:57:38.917 1627 1627 D RILJ : [4227]> VOICE_REGISTRATION_STATE [SUB0]
// rild
09-19 13:57:38.919 547 869 I RILQ : (0/547):RIL[0][event] qcril_qmi_nas_reset_data_snapshot_cache_and_timer: Resetting snapshot timer
// com.android.phone
09-19 13:57:38.919 1627 1627 D RILJ : [4228]> QUERY_NETWORK_SELECTION_MODE [SUB0]
// RILReceiver0: 运营商注册失败
09-19 13:57:38.934 1627 1715 D RILJ : [4225]< OPERATOR {null, null, null} [SUB0]
// rild
09-19 13:57:38.937 547 5170 I RILQ : (0/547):RIL[0][cmd-20(480)] qcril_qmi_nas_reset_data_snapshot_cache_and_timer: Resetting snapshot timer
09-19 13:57:38.945 547 5169 I RILQ : (0/547):RIL[0][cmd-21(960)] qcril_qmi_nas_reset_data_snapshot_cache_and_timer: Resetting snapshot timer
// RILReceiver0
09-19 13:57:38.945 1627 1715 D RILJ : [4228]< QUERY_NETWORK_SELECTION_MODE {1} [SUB0]
09-19 13:57:38.945 1627 1627 D SST : EVENT_POLL_STATE_NETWORK_SELECTION_MODE
09-19 13:57:38.946 1627 1627 D GsmCdmaPhone: [GsmCdmaPhone] isManualNetSelAllowed in mode = 11
09-19 13:57:38.946 1627 1627 D GsmCdmaPhone: [GsmCdmaPhone] isManualNetSelAllowedInGlobal in current carrier is false
09-19 13:57:38.946 1627 1627 D GsmCdmaPhone: [GsmCdmaPhone] Manual selection is supported in mode = 11
09-19 13:57:38.950 1627 1715 D RILJ : [4227]< VOICE_REGISTRATION_STATE {2, null, null, 0, null, null, null, 0, null, null, null, null, null, 0, null} [SUB0]
09-19 13:57:38.955 1627 1715 D RILJ : [4226]< DATA_REGISTRATION_STATE {3, null, null, null, 15, 20, null, 379, 25678371, null, null} [SUB0]
09-19 13:57:38.955 1627 1627 D SST : handlPollStateResultMessage: GsmSST setDataRegState=1 regState=3 dataRadioTechnology=0
// rild
09-19 13:57:38.956 547 869 I RILQ : (0/547):RIL[0][event] qcril_qmi_nas_reset_data_snapshot_cache_and_timer: Resetting snapshot timer
09-19 13:57:38.959 1627 1627 D SST : Poll ServiceState done: oldSS=[1 1 voice home data home null null null null null null (manual) Unknown Unknown CSS not supported -1 -1 RoamInd=-1 DefRoamInd=-1 EmergOnly=false IsDataRoamingFromRegistration=false IsUsingCarrierAggregation=false mRilImsRadioTechnology=0] newSS=[1 1 voice home data home null null null null null null (manual) Unknown Unknown CSS not supported -1 -1 RoamInd=-1 DefRoamInd=-1 EmergOnly=false IsDataRoamingFromRegistration=false IsUsingCarrierAggregation=false mRilImsRadioTechnology=0] oldMaxDataCalls=20 mNewMaxDataCalls=20 oldReasonDataDenied=15 mNewReasonDataDenied=15
09-19 13:57:38.967 547 869 I RILQ : (0/547):RIL[0][event] qcril_qmi_nas_reset_data_snapshot_cache_and_timer: Resetting snapshot timer
09-19 13:57:38.984 1627 1715 D RILJ : Unsol response received for UNSOL_RESPONSE_VOICE_NETWORK_STATE_CHANGED Sending ack to ril.cpp [SUB0]
vsim.log
09-19 15:07:28.875 3176 3191 D VSIM_PROTOCOL: onCommandReceiver in
09-19 15:07:28.875 3176 3191 D VSIM_PROTOCOL: data by tunnel req: 80F2000C00
09-19 15:07:28.875 3176 3191 D VSIM_PROTOCOL: dataFromTunnel, semaphore.acquire wait
09-19 15:07:28.875 3176 3191 D VSIM_PROTOCOL: dataFromTunnel, semaphore.acquire acquire
09-19 15:07:28.875 3176 3191 D VSIM_PROTOCOL: call vsim apdu command in
09-19 15:07:28.876 3176 3191 D VSIM_PROTOCOL: call vsim apdu command out
09-19 15:07:28.876 3176 3191 D VSIM_PROTOCOL: dataFromTunnel, semaphore.acquire release
09-19 15:07:28.876 3176 3191 D VSIM_PROTOCOL: data by tunnel ack: 9000
09-19 15:07:28.876 3176 3191 D VSIM_PROTOCOL: mPlatform.onResponse(commandTunnelResponse) in
09-19 15:07:28.877 3176 3191 D VSIM_PROTOCOL: mPlatform.onResponse(commandTunnelResponse) out
09-19 15:07:28.877 3176 3191 D VSIM_PROTOCOL: onCommandReceiver out
