RK3568 Buildroot

linux

Posted by LXG on May 23, 2025

Rockchip_Developer_Guide_Linux_Software_CN.pdf

Rockchip_Developer_Guide_Buildroot_CN.pdf

buildroot 添加 ffmpeg


diff --git a/buildroot/configs/rockchip/multimedia/ffmpeg.config b/buildroot/configs/rockchip/multimedia/ffmpeg.config
new file mode 100644
index 000000000..34eadb644
--- /dev/null
+++ b/buildroot/configs/rockchip/multimedia/ffmpeg.config
@@ -0,0 +1,2 @@
+BR2_PACKAGE_FFMPEG=y
+BR2_PACKAGE_FFMPEG_SWSCALE=y
diff --git a/buildroot/configs/rockchip_rk3568_defconfig b/buildroot/configs/rockchip_rk3568_defconfig
index 0637322b6..4e44f2449 100644
--- a/buildroot/configs/rockchip_rk3568_defconfig
+++ b/buildroot/configs/rockchip_rk3568_defconfig
@@ -6,6 +6,7 @@
 #include "fs/vfat.config"
 #include "gpu/gpu.config"
 #include "multimedia/audio.config"
+#include "multimedia/ffmpeg.config"
 #include "multimedia/camera.config"
 #include "multimedia/gst/audio.config"
 #include "multimedia/gst/camera.config"

编译

./build.sh buildroot

USB Gadget

Rockchip_Quick_Start_Linux_USB_Gadget_CN.pdf

Rockchip_Trouble_Shooting_Linux4.19_USB_Gadget_UVC_CN.pdf

kernel/arch/arm64/configs/rockchip_linux_defconfig


CONFIG_USB_GADGET=y
CONFIG_USB_GADGET_DEBUG_FILES=y
CONFIG_USB_GADGET_VBUS_DRAW=500
CONFIG_USB_CONFIGFS=y
CONFIG_USB_CONFIGFS_UEVENT=y
CONFIG_USB_CONFIGFS_ACM=y
CONFIG_USB_CONFIGFS_RNDIS=y
CONFIG_USB_CONFIGFS_MASS_STORAGE=y
CONFIG_USB_CONFIGFS_F_FS=y
CONFIG_USB_CONFIGFS_F_UAC1=y
CONFIG_USB_CONFIGFS_F_UAC1_LEGACY=y
CONFIG_USB_CONFIGFS_F_UAC2=y
CONFIG_USB_CONFIGFS_F_MIDI=y
CONFIG_USB_CONFIGFS_F_HID=y
CONFIG_USB_CONFIGFS_F_UVC=y


RKScript中,有三个USB相关文件:


S50usbdevice # /etc/init.d/ 使用时,配合同级目录的.usb_config使用
usbdevice # /usr/bin/
61-usbdevice.rules # /lib/udev/rules.d/

#还有两个相关文件需要用户自建或修改
.usb_config # /etc/init.d/
/tmp/.usb_config # S50usbdevice 自动生成

./buildroot/output/rockchip_rk3568/target/etc/init.d/S50usbdevice.sh


#!/bin/sh
### BEGIN INIT INFO
# Provides:       usbdevice
# Required-Start: $local_fs $syslog
# Required-Stop:  $local_fs
# Default-Start:  S
# Default-Stop:   K
# Description:    Manage USB device functions
### END INIT INFO

case "$1" in
	start|stop|restart)
		/sbin/start-stop-daemon -Sbx /usr/bin/usbdevice $1
		;;
	*)
		echo "Usage: [start|stop|restart]" >&2
		exit 3
		;;
esac

:

.usb_config 支持的配置项


#!/bin/sh

# 启用 ADB 调试功能
usb_adb_en=1

# 启用 USB 音频类 1.0(兼容性好)
usb_uac1_en=0

# 启用 USB 音频类 2.0(高质量音频)
usb_uac2_en=1

# 启用 USB 网络共享功能(RNDIS 协议)
usb_rndis_en=1

# 启用 MTP 模式(媒体文件传输)
usb_mtp_en=1

# 启用 USB 大容量存储(UMS,如 U 盘模式)
usb_ums_en=0

# 启用 USB 串口通信(ACM)
usb_acm_en=1

# 启用 USB 视频类(UVC,支持摄像头)
usb_uvc_en=1

配置USB Gadget UVC


diff --git a/buildroot/board/rockchip/rk3566_rk3568/fs-overlay/etc/init.d/.usb_config b/buildroot/board/rockchip/rk3566_rk3568/fs-overlay/etc/init.d/.usb_config
index 3de3a0bb7..a41345923 100644
--- a/buildroot/board/rockchip/rk3566_rk3568/fs-overlay/etc/init.d/.usb_config
+++ b/buildroot/board/rockchip/rk3566_rk3568/fs-overlay/etc/init.d/.usb_config
@@ -1 +1 @@
-usb_adb_en
+usb_uvc_en
diff --git a/external/rkscript/S50usbdevice.sh b/external/rkscript/S50usbdevice.sh
index 9679d40b9..282d49cdc 100755
--- a/external/rkscript/S50usbdevice.sh
+++ b/external/rkscript/S50usbdevice.sh
@@ -10,7 +10,9 @@

 case "$1" in
        start|stop|restart)
+               /usr/bin/uvc_config.sh
                /sbin/start-stop-daemon -Sbx /usr/bin/usbdevice $1
+               /sbin/start-stop-daemon --start --quiet --background --exec /usr/bin/uvc_app -- 640 480
                ;;
        *)
                echo "Usage: [start|stop|restart]" >&2


上述修改配置好后 RK3568 USB 插入后的日志


[   20.486987] dwc3 fcc00000.dwc3: device reset
[   20.668248] dwc3 fcc00000.dwc3: device reset
[   20.865929] android_work: sent uevent USB_STATE=CONNECTED
[   20.899630] configfs-gadget gadget: uvc: uvc_function_set_alt(0, 0)
[   20.899709] configfs-gadget gadget: uvc: reset UVC Control
[   20.899750] configfs-gadget gadget: uvc: uvc_function_set_alt(1, 0)
[   20.899938] android_work: sent uevent USB_STATE=CONFIGURED

ubuntu lsusb命令显示的 usb 设备(未被识别成UVC摄像头)


Bus 001 Device 017: ID 2207:0005 Fuzhou Rockchip Electronics Company rk3xxx

android端日志


[  128.409060] usb 7-1: new high-speed USB device number 4 using xhci-hcd
[  128.551376] usb 7-1: New USB device found, idVendor=2207, idProduct=0005, bcdDevice= 3.10
[  128.551457] usb 7-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[  128.551485] usb 7-1: Product: UVC
[  128.551508] usb 7-1: Manufacturer: Rockchip
[  128.551529] usb 7-1: SerialNumber: 2020
[  128.638262] input: UVC: UVC Camera as /devices/platform/usbdrd/fcc00000.dwc3/xhci-hcd.6.auto/usb7/7-1/7-1:1.0/input/input8

external/rkscript/usbdevice

rockchip-linux-rkscript_usbdevice

external/uvc_app/uvc_config.sh


#!/bin/sh

USB_ROCKCHIP_DIR=/sys/kernel/config/usb_gadget/rockchip/
USB_FUNCTIONS_DIR=${USB_ROCKCHIP_DIR}/functions/
UVC_DIR=${USB_FUNCTIONS_DIR}/uvc.gs6/
UVC_STREAMING_DIR=${UVC_DIR}/streaming/
UVC_CONTROL_DIR=${UVC_DIR}/control/

UVC_U_DIR=${UVC_STREAMING_DIR}/uncompressed/u/
UVC_M_DIR=${UVC_STREAMING_DIR}/mjpeg/m/
UVC_F_DIR=${UVC_STREAMING_DIR}/framebased/f/

configure_uvc_resolution_yuyv()
{
	W=$1
	H=$2
	DIR=${UVC_U_DIR}/${H}p/
	mkdir ${DIR}
	echo $W > ${DIR}/wWidth
	echo $H > ${DIR}/wHeight
	echo 333333 > ${DIR}/dwDefaultFrameInterval
	echo $((W*H*20)) > ${DIR}/dwMinBitRate
	echo $((W*H*20)) > ${DIR}/dwMaxBitRate
	echo $((W*H*2)) > ${DIR}/dwMaxVideoFrameBufferSize
	echo -e "333333\n666666\n1000000\n2000000" > ${DIR}/dwFrameInterval
}

configure_uvc_resolution_mjpeg()
{
	W=$1
	H=$2
	DIR=${UVC_M_DIR}/${H}p/
	mkdir ${DIR}
	echo $W > ${DIR}/wWidth
	echo $H > ${DIR}/wHeight
	echo 333333 > ${DIR}/dwDefaultFrameInterval
	echo $((W*H*20)) > ${DIR}/dwMinBitRate
	echo $((W*H*20)) > ${DIR}/dwMaxBitRate
	echo $((W*H*2)) > ${DIR}/dwMaxVideoFrameBufferSize
	echo -e "333333\n666666\n1000000\n2000000" > ${DIR}/dwFrameInterval
}

configure_uvc_resolution_h264()
{
	W=$1
	H=$2
	DIR=${UVC_F_DIR}/${H}p/
	mkdir ${DIR}
	echo $W > ${DIR}/wWidth
	echo $H > ${DIR}/wHeight
	echo 333333 > ${DIR}/dwDefaultFrameInterval
	echo $((W*H*10)) > ${DIR}/dwMinBitRate
	echo $((W*H*10)) > ${DIR}/dwMaxBitRate
	#echo $((W*H*2)) > ${DIR}/dwMaxVideoFrameBufferSize
	echo -e "333333\n666666\n1000000\n2000000" > ${DIR}/dwFrameInterval
}

/etc/init.d/S10udev stop

umount /sys/kernel/config
mount -t configfs none /sys/kernel/config
mkdir -p ${USB_ROCKCHIP_DIR}
mkdir -p ${USB_ROCKCHIP_DIR}/strings/0x409
mkdir -p ${USB_ROCKCHIP_DIR}/configs/b.1/strings/0x409

echo 0x2207 > ${USB_ROCKCHIP_DIR}/idVendor
echo 0x0310 > ${USB_ROCKCHIP_DIR}/bcdDevice
echo 0x0200 > ${USB_ROCKCHIP_DIR}/bcdUSB

echo "2020" > ${USB_ROCKCHIP_DIR}/strings/0x409/serialnumber
echo "Rockchip" > ${USB_ROCKCHIP_DIR}/strings/0x409/manufacturer
echo "UVC" > ${USB_ROCKCHIP_DIR}/strings/0x409/product

mkdir ${UVC_DIR}
#echo 3072 > ${UVC_DIR}/streaming_maxpacket
#echo 1 > ${UVC_DIR}/streaming_bulk

mkdir ${UVC_CONTROL_DIR}/header/h
ln -s ${UVC_CONTROL_DIR}/header/h ${UVC_CONTROL_DIR}/class/fs/h
ln -s ${UVC_CONTROL_DIR}/header/h ${UVC_CONTROL_DIR}/class/ss/h

##YUYV support config
mkdir ${UVC_U_DIR}
configure_uvc_resolution_yuyv 640 480
configure_uvc_resolution_yuyv 1280 720

##mjpeg support config
mkdir ${UVC_M_DIR}
configure_uvc_resolution_mjpeg 640 480
configure_uvc_resolution_mjpeg 1280 720
configure_uvc_resolution_mjpeg 1920 1080
configure_uvc_resolution_mjpeg 2560 1440
configure_uvc_resolution_mjpeg 2592 1944

## h.264 support config
mkdir ${UVC_F_DIR}
configure_uvc_resolution_h264 640 480
configure_uvc_resolution_h264 1280 720
configure_uvc_resolution_h264 1920 1080

mkdir ${UVC_STREAMING_DIR}/header/h
ln -s ${UVC_U_DIR} ${UVC_STREAMING_DIR}/header/h/u
ln -s ${UVC_M_DIR} ${UVC_STREAMING_DIR}/header/h/m
ln -s ${UVC_F_DIR} ${UVC_STREAMING_DIR}/header/h/f
ln -s ${UVC_STREAMING_DIR}/header/h ${UVC_STREAMING_DIR}/class/fs/h
ln -s ${UVC_STREAMING_DIR}/header/h ${UVC_STREAMING_DIR}/class/hs/h
ln -s ${UVC_STREAMING_DIR}/header/h ${UVC_STREAMING_DIR}/class/ss/h

echo 0x1 > ${USB_ROCKCHIP_DIR}/os_desc/b_vendor_code
echo "MSFT100" > ${USB_ROCKCHIP_DIR}/os_desc/qw_sign
echo 500 > ${USB_ROCKCHIP_DIR}/configs/b.1/MaxPower
ln -s ${USB_ROCKCHIP_DIR}/configs/b.1 ${USB_ROCKCHIP_DIR}/os_desc/b.1

echo 0x0005 > ${USB_ROCKCHIP_DIR}/idProduct
echo "uvc" > ${USB_ROCKCHIP_DIR}/configs/b.1/strings/0x409/configuration
USB_CONFIGS_DIR=${USB_ROCKCHIP_DIR}/configs/b.1
if [ -e ${USB_CONFIGS_DIR}/ffs.adb ]; then
   #for rk1808 kernel 4.4
   rm -f ${USB_CONFIGS_DIR}/ffs.adb
else
   ls ${USB_CONFIGS_DIR} | grep f[0-9] | xargs -I {} rm ${USB_CONFIGS_DIR}/{}
fi
ln -s ${UVC_DIR} ${USB_ROCKCHIP_DIR}/configs/b.1/f1

UDC=`ls /sys/class/udc/| awk '{print $1}'`
echo $UDC > ${USB_ROCKCHIP_DIR}/UDC

打开工具

Ubuntu: guvcview

Windows: Amcap

Android: com.shenyaocn.android.usbdualcamera.apk

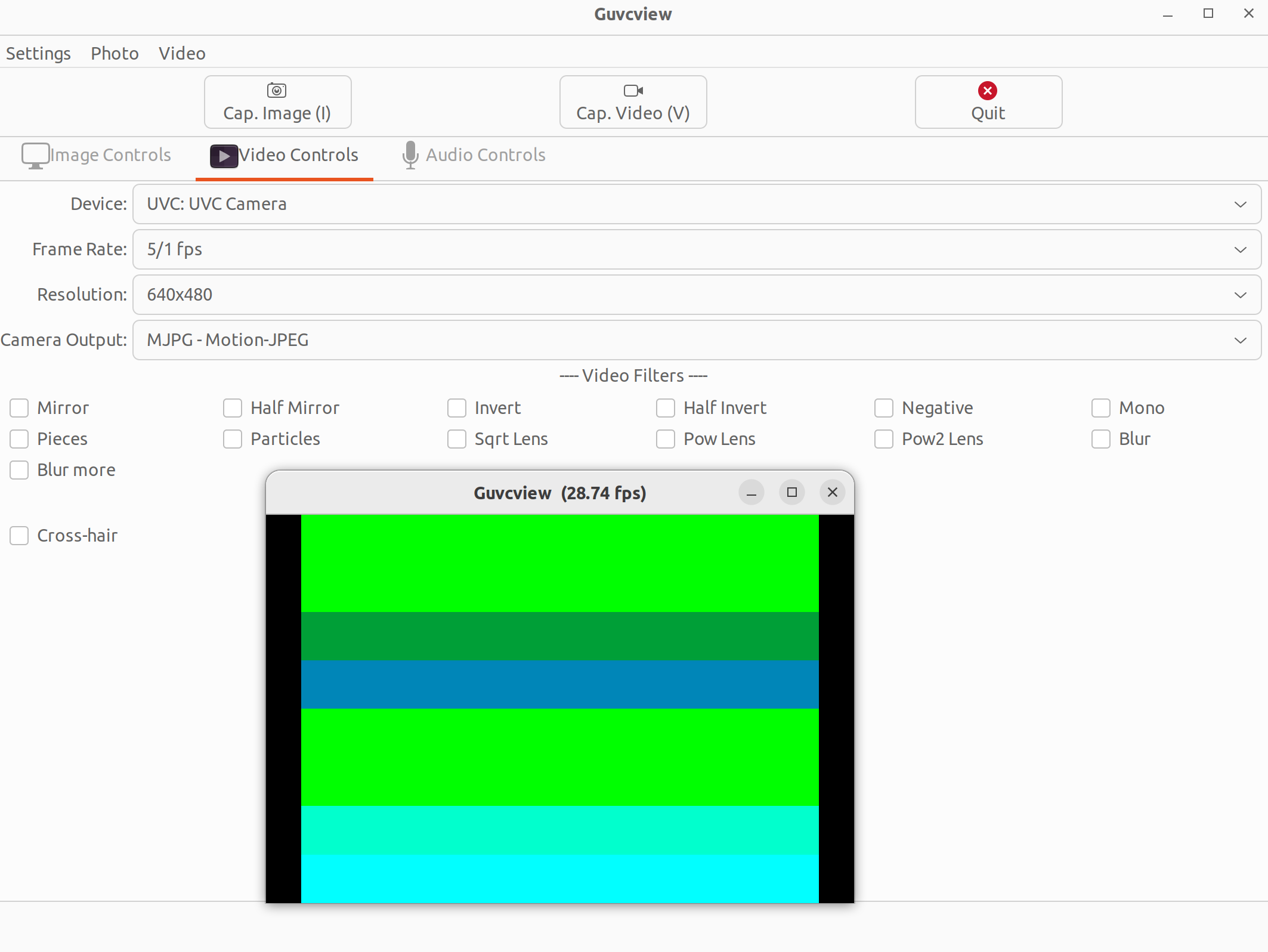

guvcview

Android

默认生成的节点


rk3568_r:/ $ ls /dev/video*
/dev/video0  /dev/video1

dumpsys camera


rk3568_r:/ $ dumpsys media.camera

== Service global info: ==

Number of camera devices: 1
Number of normal camera devices: 1
Number of public camera devices visible to API1: 1
    Device 0 maps to "100"
Active Camera Clients:
[]
Allowed user IDs: 0

== Camera service events log (most recent at top): ==
  05-24 16:12:15 : ADD device 100, reason: (Device added)
  05-24 16:11:52 : USER_SWITCH previous allowed user IDs: <None>, current allowed user IDs: 0

== Camera device 100 dynamic info: ==
  Device 100 is closed, no client instance
== Camera Provider HAL external/0 (v2.5, remote) static info: 1 devices: ==
== Camera HAL device device@3.4/external/100 (v3.4) static information: ==
  Resource cost: 100
  Conflicting devices: None
  API1 info:
    Has a flash unit: false
    Facing: Front
    Orientation: 0
  API2 camera characteristics:
    Dumping camera metadata array: 54 / 54 entries, 1800 / 1800 bytes of extra data.
      Version: 1, Flags: 00000000
      android.info.supportedHardwareLevel (150000): byte[1]
        [EXTERNAL ]
      android.colorCorrection.availableAberrationModes (00004): byte[1]
        [0 ]
      android.control.aeAvailableAntibandingModes (10012): byte[1]
        [3 ]
      android.control.maxRegions (1001c): int32[3]
        [0 0 0 ]
      android.control.availableVideoStabilizationModes (1001a): byte[1]
        [0 ]
      android.control.awbAvailableModes (1001b): byte[1]
        [1 ]
      android.control.aeAvailableModes (10013): byte[1]
        [1 ]
      android.control.availableEffects (10018): byte[1]
        [0 ]
      android.control.availableModes (10026): byte[2]
        [0 1 ]
      android.edge.availableEdgeModes (30002): byte[1]
        [0 ]
      android.flash.info.available (50000): byte[1]
        [FALSE ]
      android.hotPixel.availableHotPixelModes (60001): byte[1]
        [0 ]
      android.jpeg.availableThumbnailSizes (70007): int32[14]
        [0 0 176 144 ]
        [240 144 256 144 ]
        [240 160 256 154 ]
        [240 180 ]
      android.jpeg.maxSize (70008): int32[1]
        [3145728 ]
      android.lens.info.focusDistanceCalibration (90007): byte[1]
        [UNCALIBRATED ]
      android.lens.info.availableOpticalStabilization (90003): byte[1]
        [0 ]
      android.lens.facing (80005): byte[1]
        [EXTERNAL ]
      android.noiseReduction.availableNoiseReductionModes (a0002): byte[1]
        [0 ]
      android.noiseReduction.mode (a0000): byte[1]
        [OFF ]
      android.request.partialResultCount (c000b): int32[1]
        [1 ]
      android.request.pipelineMaxDepth (c000a): byte[1]
        [4 ]
      android.request.maxNumOutputStreams (c0006): int32[3]
        [0 2 1 ]
      android.request.maxNumInputStreams (c0008): int32[1]
        [0 ]
      android.scaler.availableMaxDigitalZoom (d0004): float[1]
        [1.00000000 ]
      android.scaler.croppingType (d000d): byte[1]
        [CENTER_ONLY ]
      android.sensor.availableTestPatternModes (e0019): int32[1]
        [0 ]
      android.sensor.info.timestampSource (f0008): byte[1]
        [UNKNOWN ]
      android.sensor.orientation (e000e): int32[1]
        [0 ]
      android.shading.availableModes (100002): byte[1]
        [0 ]
      android.statistics.info.availableFaceDetectModes (120000): byte[1]
        [0 ]
      android.statistics.info.maxFaceCount (120002): int32[1]
        [0 ]
      android.statistics.info.availableHotPixelMapModes (120006): byte[1]
        [0 ]
      android.statistics.info.availableLensShadingMapModes (120007): byte[1]
        [0 ]
      android.sync.maxLatency (170001): int32[1]
        [UNKNOWN ]
      android.request.availableRequestKeys (c000d): int32[28]
        [3 65536 65537 65538 ]
        [65539 65542 65541 65543 ]
        [65545 65546 65547 65549 ]
        [65550 65551 65552 65553 ]
        [262146 458755 458756 458757 ]
        [458758 524292 655360 851968 ]
        [917528 1114112 1114115 65583 ]
      android.request.availableResultKeys (c000e): int32[35]
        [3 65536 65537 65538 ]
        [65539 65542 65567 65541 ]
        [65543 65568 65545 65546 ]
        [65547 65570 65549 65550 ]
        [65551 65552 65553 262146 ]
        [262149 458755 458756 458757 ]
        [458758 524292 655360 786441 ]
        [851968 917520 1114112 1114115 ]
        [1114128 1114126 65583 ]
      android.request.availableCharacteristicsKeys (c000f): int32[43]
        [4 65554 65555 65556 ]
        [65557 65558 65572 65559 ]
        [65560 65574 65561 65562 ]
        [65563 65573 65564 327680 ]
        [1376256 458759 524293 589827 ]
        [589831 655362 786444 786440 ]
        [786438 786443 786442 851972 ]
        [851978 851981 983040 983044 ]
        [983046 983050 983048 917518 ]
        [1048578 1179648 1179654 1179655 ]
        [1179650 1507329 65582 ]
      android.control.aeCompensationRange (10015): int32[2]
        [0 0 ]
      android.control.aeCompensationStep (10016): rational[1]
        [(0 / 1) ]
      android.control.afAvailableModes (10017): byte[2]
        [1 0 ]
      android.control.availableSceneModes (10019): byte[1]
        [0 ]
      android.control.aeLockAvailable (10024): byte[1]
        [FALSE ]
      android.control.awbLockAvailable (10025): byte[1]
        [FALSE ]
      android.scaler.availableStreamConfigurations (d000a): int32[60]
        [33 640 480 OUTPUT ]
        [35 640 480 OUTPUT ]
        [34 640 480 OUTPUT ]
        [33 1280 720 OUTPUT ]
        [35 1280 720 OUTPUT ]
        [34 1280 720 OUTPUT ]
        [33 1920 1080 OUTPUT ]
        [35 1920 1080 OUTPUT ]
        [34 1920 1080 OUTPUT ]
        [33 2560 1440 OUTPUT ]
        [35 2560 1440 OUTPUT ]
        [34 2560 1440 OUTPUT ]
        [33 2592 1944 OUTPUT ]
        [35 2592 1944 OUTPUT ]
        [34 2592 1944 OUTPUT ]
      android.scaler.availableMinFrameDurations (d000b): int64[60]
        [33 640 ]
        [480 200000000 ]
        [35 640 ]
        [480 200000000 ]
        [34 640 ]
        [480 200000000 ]
        [33 1280 ]
        [720 200000000 ]
        [35 1280 ]
        [720 200000000 ]
        [34 1280 ]
        [720 200000000 ]
        [33 1920 ]
        [1080 200000000 ]
        [35 1920 ]
        [1080 200000000 ]
        [34 1920 ]
        [1080 200000000 ]
        [33 2560 ]
        [1440 200000000 ]
        [35 2560 ]
        [1440 200000000 ]
        [34 2560 ]
        [1440 200000000 ]
        [33 2592 ]
        [1944 200000000 ]
        [35 2592 ]
        [1944 200000000 ]
        [34 2592 ]
        [1944 200000000 ]
      android.scaler.availableStallDurations (d000c): int64[60]
        [33 640 ]
        [480 1000000000 ]
        [35 640 ]
        [480 0 ]
        [34 640 ]
        [480 0 ]
        [33 1280 ]
        [720 1000000000 ]
        [35 1280 ]
        [720 0 ]
        [34 1280 ]
        [720 0 ]
        [33 1920 ]
        [1080 1000000000 ]
        [35 1920 ]
        [1080 0 ]
        [34 1920 ]
        [1080 0 ]
        [33 2560 ]
        [1440 1000000000 ]
        [35 2560 ]
        [1440 0 ]
        [34 2560 ]
        [1440 0 ]
        [33 2592 ]
        [1944 1000000000 ]
        [35 2592 ]
        [1944 0 ]
        [34 2592 ]
        [1944 0 ]
      android.control.aeAvailableTargetFpsRanges (10014): int32[2]
        [2 5 ]
      android.sensor.info.maxFrameDuration (f0004): int64[1]
        [500000000 ]
      android.sensor.info.preCorrectionActiveArraySize (f000a): int32[4]
        [0 0 2592 1944 ]
      android.sensor.info.activeArraySize (f0000): int32[4]
        [0 0 2592 1944 ]
      android.sensor.info.pixelArraySize (f0006): int32[2]
        [2592 1944 ]
      android.request.availableCapabilities (c000c): byte[1]
        [BACKWARD_COMPATIBLE ]
      android.scaler.availableRotateAndCropModes (d0010): byte[1]
        [0 ]
      android.control.zoomRatioRange (1002e): float[2]
        [1.00000000 1.00000000 ]
== Camera HAL device device@3.4/external/100 (v3.4) dumpState: ==
No active camera device session instance
== Camera Provider HAL legacy/0 (v2.5, remote) static info: 0 devices: ==

== Vendor tags: ==

  Dumping vendor tag descriptors for vendor with id 3854507339
  Dumping configured vendor tag descriptors: 10 entries
    0x80000000 (privatedata_effective_driver_frame_id) with type 3 (int64) defined in section org.codeaurora.rkcamera3.privatedata
    0x80000001 (privatedata_frame_sof_timestamp) with type 3 (int64) defined in section org.codeaurora.rkcamera3.privatedata
    0x80000002 (privatedata_stillcap_sync_needed) with type 0 (byte) defined in section org.codeaurora.rkcamera3.privatedata
    0x80000003 (privatedata_stillcap_sync_cmd) with type 0 (byte) defined in section org.codeaurora.rkcamera3.privatedata
    0x80000004 (privatedata_stillcap_isp_param) with type 0 (byte) defined in section org.codeaurora.rkcamera3.privatedata
    0x80010000 (3dnrmode) with type 0 (byte) defined in section com.rockchip.nrfeature
    0x80020000 (brightness) with type 0 (byte) defined in section com.rockchip.control.aiq
    0x80020001 (contrast) with type 0 (byte) defined in section com.rockchip.control.aiq
    0x80020002 (saturation) with type 0 (byte) defined in section com.rockchip.control.aiq
    0x80030000 (meanluma) with type 2 (float) defined in section com.rockchip.luma
  Dumping vendor tag descriptors for vendor with id 2592128789
  Dumping configured vendor tag descriptors: None set

== Camera error traces (0): ==
  No camera traces collected.


安卓系统打开相机时的注意事项

S50usbdevice.sh 文件中的分辨率需要在 uvc_config.sh文件中包含

安卓app打开相机时选择的分辨率需要和 S50usbdevice.sh 文件中配置的一致
