华为 FusionServer 2288H V5

Posted by LXG on January 26, 2026

华为FusionServer 2288H V5服务器

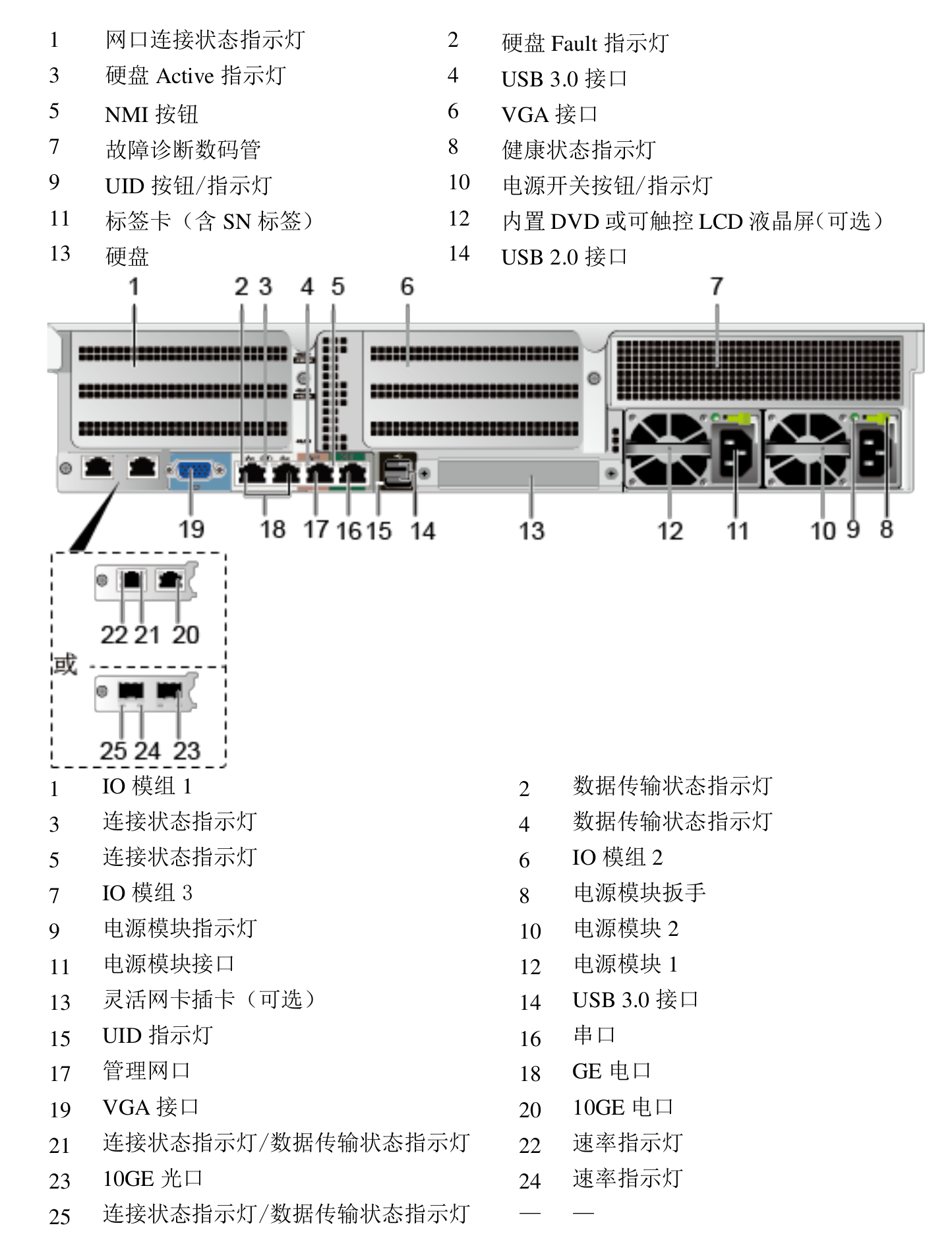

服务器接口

huawei_2288h_v5_2

huwei_2288h_v5

AI 生成的图

xt_server_config

查看服务器信息


hw@hw-2288H-V5:~$ hostnamectl
   Static hostname: hw-2288H-V5
         Icon name: computer-server
           Chassis: server
        Machine ID: ef349b6080594a329bc961331e364d18
           Boot ID: 84cebaf4e05c4587a5b92e18a97aa8b6
  Operating System: Ubuntu 20.04.4 LTS
            Kernel: Linux 5.15.0-127-generic
      Architecture: x86-64

CPU


hw@hw-2288H-V5:~$ sudo lscpu
架构：                                x86_64
CPU 运行模式：                        32-bit, 64-bit
字节序：                              Little Endian
Address sizes:                        46 bits physical, 48 bits virtual
CPU:                                  32
在线 CPU 列表：                       0-31
每个核的线程数：                      2
每个座的核数：                        8
座：                                  2
NUMA 节点：                           2
厂商 ID：                             GenuineIntel
CPU 系列：                            6
型号：                                85
型号名称：                            Montage Jintide(R) C4215R
步进：                                7
CPU MHz：                             1000.000
CPU 最大 MHz：                        4000.0000
CPU 最小 MHz：                        1000.0000
BogoMIPS：                            6400.00
虚拟化：                              VT-x
L1d 缓存：                            512 KiB
L1i 缓存：                            512 KiB
L2 缓存：                             16 MiB
L3 缓存：                             22 MiB
NUMA 节点0 CPU：                      0-7,16-23
NUMA 节点1 CPU：                      8-15,24-31
Vulnerability Gather data sampling:   Vulnerable: No microcode
Vulnerability Itlb multihit:          KVM: Mitigation: VMX disabled
Vulnerability L1tf:                   Not affected
Vulnerability Mds:                    Not affected
Vulnerability Meltdown:               Not affected
Vulnerability Mmio stale data:        Vulnerable: Clear CPU buffers attempted, no microcode; SMT vulnerable
Vulnerability Reg file data sampling: Not affected
Vulnerability Retbleed:               Mitigation; Enhanced IBRS
Vulnerability Spec rstack overflow:   Not affected
Vulnerability Spec store bypass:      Mitigation; Speculative Store Bypass disabled via prctl and seccomp
Vulnerability Spectre v1:             Mitigation; usercopy/swapgs barriers and __user pointer sanitization
Vulnerability Spectre v2:             Mitigation; Enhanced / Automatic IBRS; IBPB conditional; RSB filling; PBRSB-eIBRS SW sequence; BHI SW loop, KVM SW loop
Vulnerability Srbds:                  Not affected
Vulnerability Tsx async abort:        Mitigation; TSX disabled
标记：                                fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx pdpe1gb rdtscp lm constant_
                                      tsc art arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc cpuid aperfmperf pni pclmulqdq dtes64 ds_cpl vmx smx est tm2 ssse3 sdbg fma cx16 xtpr pdcm p
                                      cid dca sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave avx f16c rdrand lahf_lm abm 3dnowprefetch cpuid_fault epb cat_l3 cdp_l3 invpcid_single
                                      ssbd mba ibrs ibpb stibp ibrs_enhanced tpr_shadow vnmi flexpriority ept vpid ept_ad fsgsbase tsc_adjust bmi1 avx2 smep bmi2 erms invpcid cqm mpx rdt_a avx512f
                                       avx512dq rdseed adx smap clflushopt clwb intel_pt avx512cd avx512bw avx512vl xsaveopt xsavec xgetbv1 xsaves cqm_llc cqm_occup_llc cqm_mbm_total cqm_mbm_local
                                       dtherm ida arat pln pts pku ospke avx512_vnni md_clear flush_l1d arch_capabilities

CPU配置

属性 值 说明
架构 x86_64 支持 64 位操作系统
核心数 32 个线程，16 核 × 2 个座 32 线程，双路物理 CPU，每颗 CPU 16 核
每核线程数 2 支持超线程（Hyper-Threading）
频率 1 GHz 基础，4 GHz 最大 可动态调节，节能与性能兼顾
CPU 型号 Montage Jintide C4215R 双路服务器级 CPU
缓存 L1d/i 512 KiB，L2 16 MiB，L3 22 MiB 较大缓存，适合高并发计算
NUMA 节点 2 内存访问分布在两个物理 CPU
虚拟化 VT-x 支持硬件虚拟化

双路CPU

  • 每颗 CPU：16 核 × 2 线程（超线程） = 32 线程
  • 双路：两颗 CPU → 总共 32 核 × 2线程/核 = 64 线程

内存配置


hw@hw-2288H-V5:~$ sudo lshw -short -C memory
H/W path        Device     Class          Description
=====================================================
/0/0                       memory         128KiB BIOS
/0/53/50                   memory         512KiB L1 cache
/0/53/51                   memory         8MiB L2 cache
/0/53/52                   memory         11MiB L3 cache
/0/57/54                   memory         512KiB L1 cache
/0/57/55                   memory         8MiB L2 cache
/0/57/56                   memory         11MiB L3 cache
/0/35                      memory         256GiB System Memory
/0/35/0                    memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/1                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/2                    memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/3                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/4                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/5                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/6                    memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/7                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/8                    memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/9                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/a                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/b                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/c                    memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/d                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/e                    memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/f                    memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/10                   memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/11                   memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/12                   memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/13                   memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/14                   memory         32GiB DIMM DDR4 Synchronous Registered (Buffered) 2933 MHz (0.3 ns)
/0/35/15                   memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/16                   memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/35/17                   memory         DIMMProject-Id-Version: lshwReport-Msgid-Bugs-To: FULL NAME <EMAIL@ADDRESS>PO-Revision-Date: 2012-10-07 14:34+0000Last-Translator: lumingzh <lumingzh@qq.c
/0/100/1f.2                memory         Memory controller
属性 数值
总内存 256 GiB DDR4 Registered (Buffered)
DIMM 配置 16 条 × 32 GiB，每条 2933 MHz
类型 Synchronous Registered (Buffered) DDR4
延迟 0.3 ns（时钟周期）

存储空间


hw@hw-2288H-V5:~$ lsblk -a -o NAME,FSTYPE,SIZE,MODEL,MOUNTPOINT
NAME   FSTYPE     SIZE MODEL MOUNTPOINT
loop0  squashfs     4K       /snap/bare/5
loop1  squashfs  63.8M       /snap/core20/2686
loop2  squashfs  65.2M       /snap/gtk-common-themes/1519
loop3  squashfs  50.9M       /snap/snapd/25577
loop4  squashfs  50.8M       /snap/snapd/25202
loop5  squashfs    74M       /snap/core22/2193
loop6  squashfs  12.2M       /snap/snap-store/1216
loop7  squashfs   516M       /snap/gnome-42-2204/202
loop8  squashfs  91.7M       /snap/gtk-common-themes/1535
loop9  squashfs  54.2M       /snap/snap-store/558
loop10 squashfs 349.7M       /snap/gnome-3-38-2004/143
loop11 squashfs  63.8M       /snap/core20/2682
loop12 squashfs 248.8M       /snap/gnome-3-38-2004/99
loop13 squashfs 516.2M       /snap/gnome-42-2204/226
loop14 squashfs    74M       /snap/core22/2163
loop15
sda             893.1G AVAGO
├─sda1 vfat       512M       /boot/efi
└─sda2 ext4     892.7G       /
sdb               3.3T AVAGO

硬件配置

类型 状态 数量
NVMe SSD 未插入 0
SATA SSD/HDD 已插入 2（都是 HDD）

当前配置 ： Seagate Exos 10E2400 SAS 硬盘 1.2TB x 4 块

ST2400MM0009

显卡配置


hw@hw-2288H-V5:~$ nvidia-smi
Mon Jan 26 18:01:17 2026
+---------------------------------------------------------------------------------------+
| NVIDIA-SMI 535.216.01             Driver Version: 535.216.01   CUDA Version: 12.2     |
|-----------------------------------------+----------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |         Memory-Usage | GPU-Util  Compute M. |
|                                         |                      |               MIG M. |
|=========================================+======================+======================|
|   0  NVIDIA GeForce RTX 3090        Off | 00000000:3B:00.0 Off |                  N/A |
| 32%   30C    P8              43W / 350W |     16MiB / 24576MiB |      0%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+
|   1  NVIDIA GeForce RTX 3090        Off | 00000000:86:00.0 Off |                  N/A |
| 42%   31C    P8              34W / 350W |     16MiB / 24576MiB |      0%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

+---------------------------------------------------------------------------------------+
| Processes:                                                                            |
|  GPU   GI   CI        PID   Type   Process name                            GPU Memory |
|        ID   ID                                                             Usage      |
|=======================================================================================|
|    0   N/A  N/A      1395      G   /usr/lib/xorg/Xorg                            4MiB |
|    0   N/A  N/A      5922      G   /usr/lib/xorg/Xorg                            4MiB |
|    1   N/A  N/A      1395      G   /usr/lib/xorg/Xorg                            4MiB |
|    1   N/A  N/A      5922      G   /usr/lib/xorg/Xorg                            4MiB |
+---------------------------------------------------------------------------------------+

显卡配置

GPU # 型号 PCIe 总线 显存 驱动 CUDA 版本
0 NVIDIA GeForce RTX 3090 3B:00.0 24GB 535.216.01 12.2
1 NVIDIA GeForce RTX 3090 86:00.0 24GB 535.216.01 12.2

通过 iBMC 地址访问服务器

iBMC 并不是完整的通用操作系统，它是一个嵌入式管理系统/固件，运行在服务器主板的独立管理芯片上（BMC 芯片），与主机操作系统完全独立

通过iBMC地址访问服务器

开机过程中会显示iBMC地址, 使用账号密码登陆即可

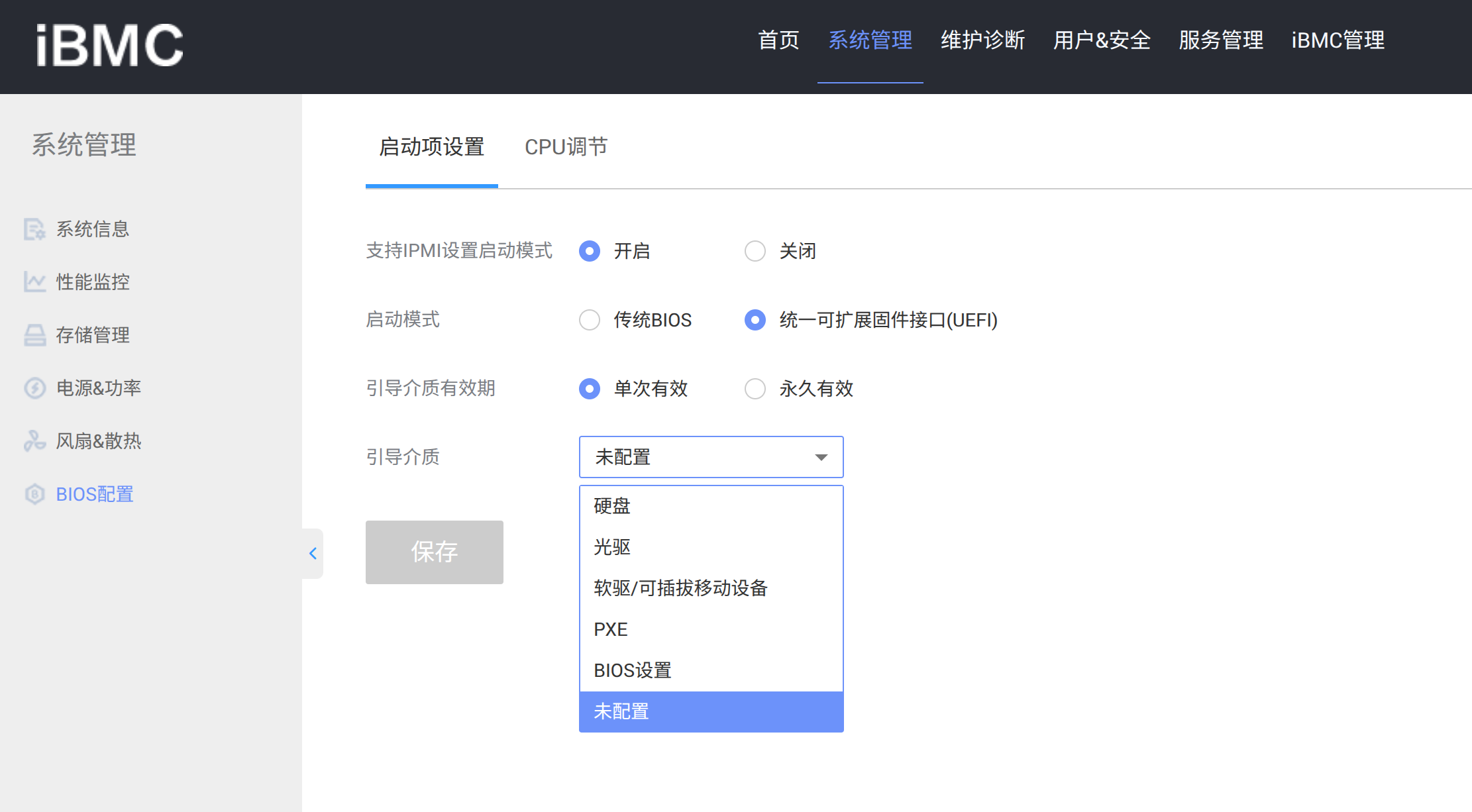

通过iBMC修改BIOS

huawei_ibmc

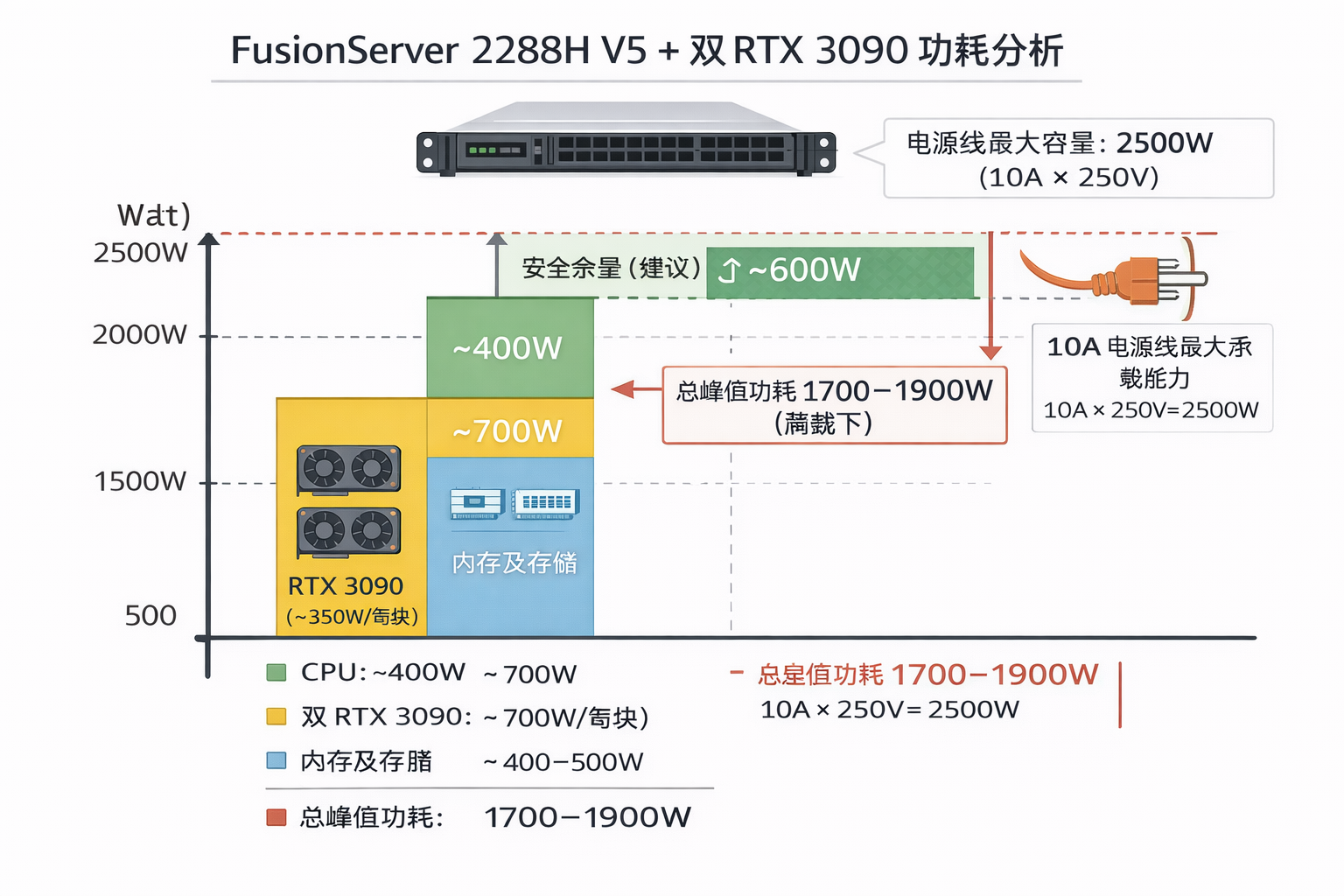

整机功率估算

huwei_2288h_v5_power
